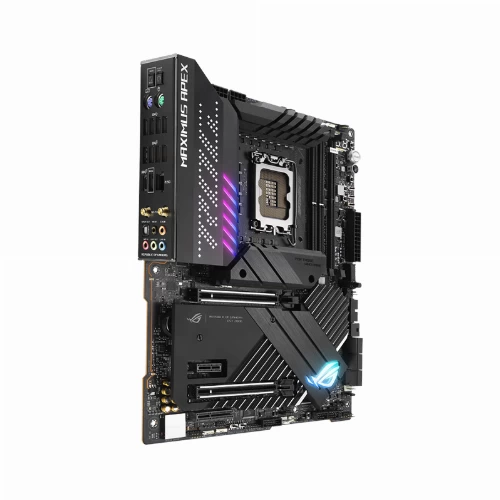

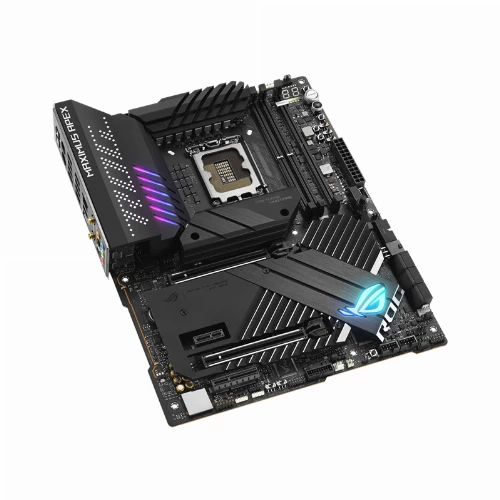

مادربرد ایسوس مدل ROG MAXIMUS Z690 APEX
چند خط درباره محصول:
مادربرد ایسوس ASUS ROG MAXIMUS Z690 APEX سازگار با پردازنده های نسل 12 ، 13 ، پنتیوم و سلرون اینتل با سوکت پردازنده LGA1700 ، دارای 2 عدد اِسلات رَم از نوع DDR5 ، همچنین دارای کارت صدای داخلی ROG SupremeFX ، کارت شبکه Intel ، قابلیت وایرلس و بلوتوث ، شامل درگاه های USB ، خروجی صدا ، شبکه LAN و... ، در نهایت همراه با اتصالات و اِسلات های M.2 ، SATA ، هدرهای USB و تاندربولت ، انواع اِسلات های PCIe و...
مشخصات فنی
قالب ساخت
ATX
چیپست مادربرد
Intel Z690
چیپ BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
نوع پردازنده
12th Gen Intel Core, 13th Gen Intel Core, Pentium Gold, and Celeron Processors
سوکت پردازنده
LGA1700
نوع رَم
DDR5 Dual Channel Memory Architecture
فرکانس رَم
up to 6600+(OC) MHz Non-ECC, Un-Buffered Memory
حداکثر حافظه رَم
64 GB
تعداد اِسلات رَم
2x
ویژگی های رَم
Supports Intel Extreme Memory Profile (XMP)
کارت صدا
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
کارت شبکه
1 x Intel 2.5Gb Ethernet with ASUS LANGuard

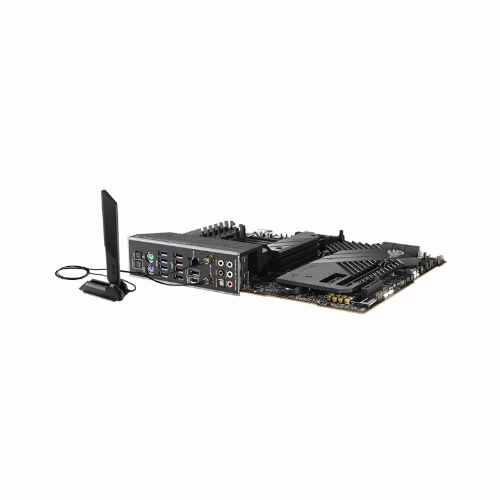

بلوتوث و وایرلس
Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz Frequency Band
Bluetooth v5.2
درگاه های صدا
5 x Gold-Plated Audio Jacks and 1 x Optical S/PDIF Out Port

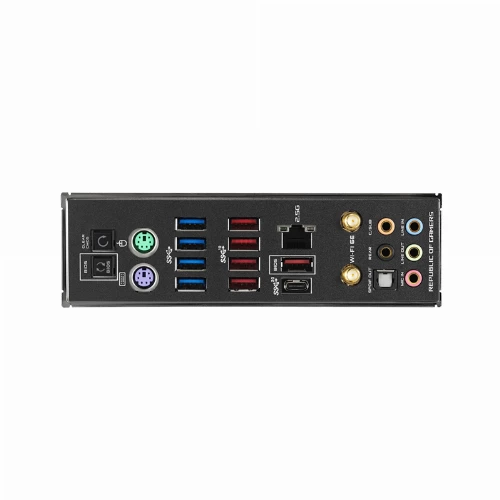

درگاه های USB
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 5 x USB 3.2 Gen 2 ports (5 x Type-A), and 4 x USB 3.2 Gen 1 ports (4 x Type-A)
درگاه های LAN
1 x Intel 2.5Gb Ethernet Port
دیگر درگاه ها
1 x Wi-Fi Module, 1 x BIOS FlashBack Button, 1 x Clear CMOS Button, 1 x PS/2 Keyboard (purple) Port, and 1 x PS/2 Mouse (green) Port
اِسلات های توسعه
Intel 13th & 12th Gen Processors: 2 x PCIe 5.0 x16 Slots (supports x16 or x8/x8 modes)
Intel Z690 Chipset:1 x PCIe 3.0 x4 Slot and 1 x PCIe 3.0 x1 Slot
اتصالات داخلی I/O
Fan and Cooling Related: 1 x 4-pin CPU Fan Header, 1 x 4-pin CPU OPT Fan Header, 1 x 4-pin AIO Pump Header, 3 x 4-pin Chassis Fan Headers, 2 x 4-pin Full Speed Fan Headers, 1 x W_PUMP+ Header, 1 x 2-pin Water In Header, 1 x 2-pin Water Out Header, and 1 x 3-pin Water Flow Header
Power Related: 1 x 24-pin Main Power Connector, 2 x 8-pin +12V Power Connector, and 1 x 6-pin PCIe Graphics Card connector

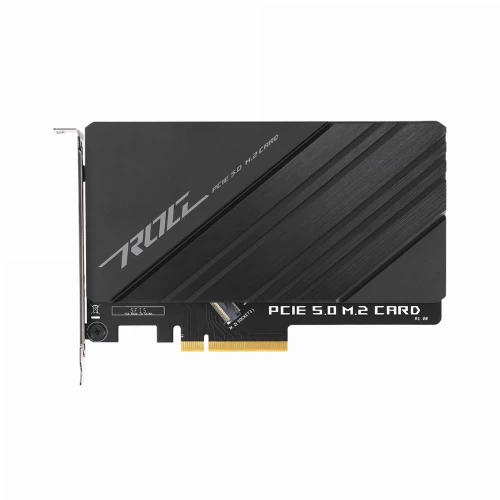

Storage Related: 2 x M.2 Slots (Key M), 6 x SATA 6Gb/s Ports, and 1 x DIMM.2 Slot Support
USB: 1 x USB 3.2 Gen 2x2 Connector (supports USB Type-C), 2 x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports, and 2 x USB 2.0 Headers Support Additional 4 USB 2.0 Ports
Miscellaneous: 1 x 80 Light Bar Jumper, 3 x Addressable Gen 2 Headers, 1 x AURA RGB Header, 2 x BCLK Button, 1 x BIOS Switch Button, 1 x FlexKey Button, 1 x Front Panel Audio Header (AAFP), 1 x LN2 Mode Jumper, 1 x OSC Sence Header, 1 x Pause Switch, 12 x ProbeIt Measurement Points, 1 x ReTry Button, 1 x RSVD Header, 2 x RSVD Switches, 1 x Safe Boot Button, 1 x Slow Mode Switch, 1 x Start Button, 1 x 10-1 pin System Panel Header, 1 x Thermal Sensor Header, 1 x Thunderbolt Header, and 1 x V_Latch Switch
دیگر ویژگی ها
Extreme OC Kit: FlexKey Button, LN2 Mode, Probelt, ReTry Button, Safe Boot Button, Start Button, and Slow Mode
Extreme Engine Digi+: SMD Capacitors and MicroFine Alloy Choke
ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Code, Q-Connector, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), and Q-Slot
ASUS Thermal Solution: M.2 Heatsink Backplate, M.2 Heatsink, and VRM Heatsink Design
ASUS EZ DIY: BIOS FlashBack Button, Clear CMOS Button, CPU Socket Lever Protector, ProCool II, Pre-Mounted I/O Shield, SafeSlot, and SafeDIMM
AURA Sync: AURA RGB Header and Addressable Gen 2 RGB Header
ابعاد
30.5 x 24.4 cm
